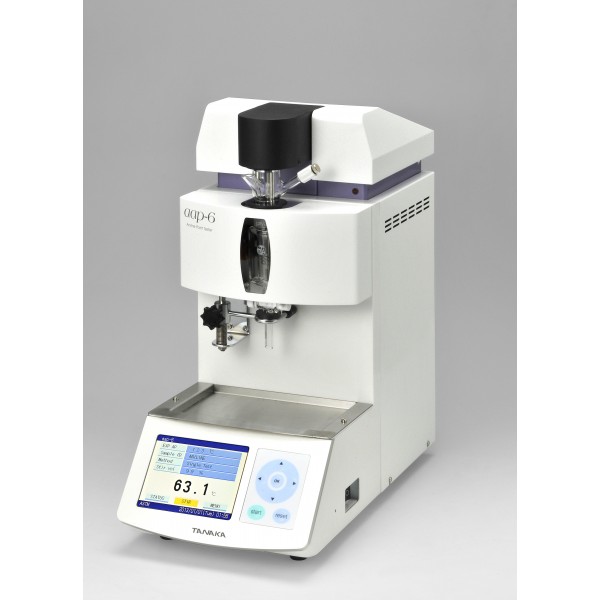

AAP-6

Model: AAP-6
Conforming Standards: ISO2977, ASTM D611, etc.
Measuring Range: Ambient +20°C to 170°C, for bellow ambient temperature + 20°C, the optional water jacketed measuring cell and a cryostat must be used.
Temeprature Sensor: Pt100 in stainless steel sheath
Aniline Point Detector: Photo-electric cell with special detection circuitry
Measuring Cell: Modified U-Tube type, vacuum jacketed glass cell with PTFE stopcock at the bottom for drainage.
Display: 5,7" color LCD with LED backlight
Heater: Immersion heater in stainless steel sheath: 20W
Sequense Control: By an on-board microcomputer
Test Mode: Sinle, repeat (2 kinds, average is reported to nearest 0,05°C), SPE and manual temp set
I/O Port: 1x Ethernet for LIMS, 1x USB for Flash memory or keyboard, 1x RS-232C for PC or optional printer
Safety Mechanism: Automatically shuts off and the problem is reported by buzzer and display in case: a) EAP+10°C or 170°C is reached, b) Temperature sensor is found defective, c) Light projector or receiver is found defective, d) Built in battery is found drained out, e) Control computer runs away (no display)
Dimensions (W X D X H): 230 x 470 x 490 mm
Weight: 14Kg
Ambiental Conditions: 10 to 40°C, Relative Humidity less than 90%
Power Supply: AC 100 to 240V; 50/60Hz; 125W max

IQ/OQ/PQ Qualification: Yes, possible
