Clarity (F1) PC software workstation with LC control

Description: Chromatography software for data acquisition and Obrada podataka
SW Package: SW on a DVD, HW key (dongle) and manuals, Optional A/D converter and cables
A/D converters: Proprietary only - external USB
Operating systems 32bit: Microsoft Windows XP^{SP3^{Operating systems 32/64bit: 7^{SP1^{, 8.1 and 10 (Ask for Compatibility table if needed)
Number of connected instruments: Up to 4 chromatographs/Instruments (= up to 4 time basis) at a time. Each up to 32 signals/channels
Data acquisition: Any detector with voltage output: up to 10m distance using USB converters
Measuring ranges: Bipolar: 156, 1250, 10000 mV, Integration frequency up to 400 Hz, 24-bit resolution
GLP/ 21 CFR Part11 requirements: Password protection/expiration, Electronic signature, Audit Trails, User Accounts with access rights, raw data and history of modifications stored in chromatogram, Installation qualification (IQ) Test, Validation Kit
Co-operation with autosamplers: The software cooperates with all autosamplers in active or passive mode by synchronization on TTL signal level. Direct control of selected autosamplers is available (refer to the List of controlled instruments, code D004)
Integration: 27 integration parameters, such as Peak Width, Threshold, Tangent Slope Ratio, itd. Filtering capabilities: FFT, Savitzky-Golay, itd. Integration parameters are programmable in time, Automatsko reintegration
Calculation types: Up to 5 ISTD's (internal standards). Both without and with Kalibracija (internal and external standard methods), parameters of individual peaks for assessing both the efficiency of the column and the chromatographic system as a whole, SST module for establishing deviations and reproducibility of selected parameters

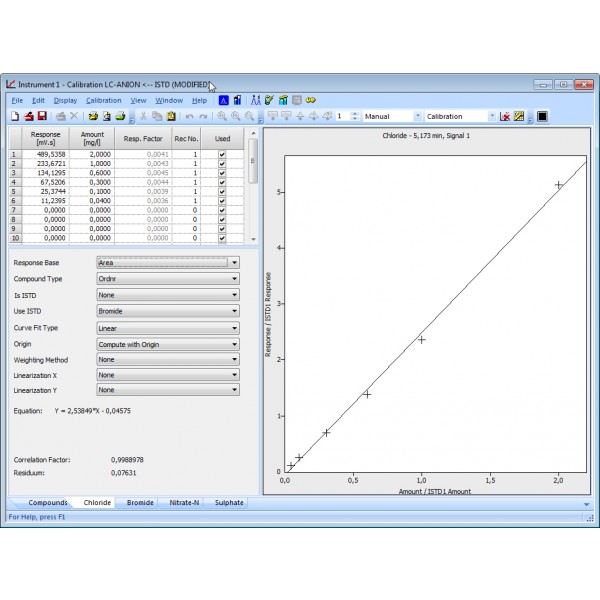

Kalibracijas: 6 types of Kalibracija curves, up to 20 levels, Reference Peaks, Groups, unlimited number of standards (peaks), LOD, LOQ

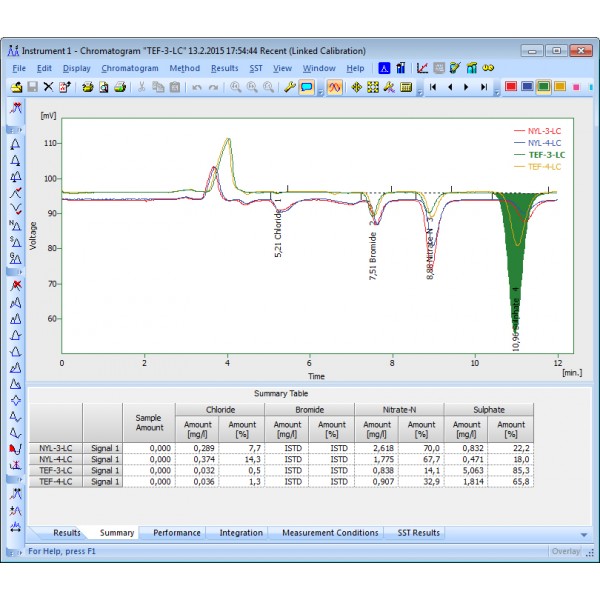

Work with chromatograms: Overlay of up to 1 000 of chromatograms, mathematical operations with chromatograms, po želji korisnika labels and settings for chromatograms

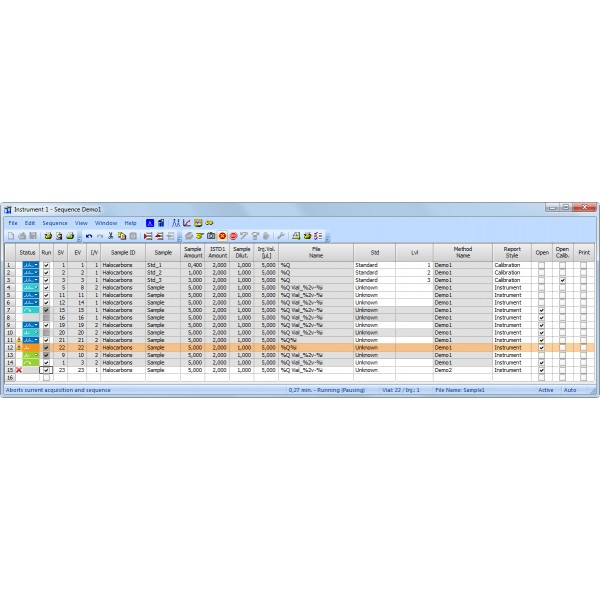

Automation: Sequences, Post Run - Automatsko launching of selected commands and applications immediately after the chromatogram acquisition, Batch processing, command line parameters
Presentation of results: Result and Summary Tables, both integrated and customizable, columns with user-defined calculation, export in text or database format
Calculations: Custom: 12 predefined mathematical operators, 15 basic and 4 summary functions Special: Kovats indexes, noise/drift determination
Reports: Custom protocol layouts, Print Preview, Print to PDF file, E-mail report
Data export: ASCII, AIA, dBase, (LIMS supported by export of files in txt format)
Data import: ASCII, AIA, (LIMS supported by import of files in txt format)
Multi-user environment: Može se birati system of user accounts with independently customizable behavior and appearance for individual users
Network environment: Easy off-line (at the file level) data sharing among all stations in a local network
Extensions: GPC, PDA, CE, EA, NGA, DHA, MS, SST module
Supported languages: Clarity is available in English, Chinese, French, German, Spanish and Russian.
Support, warranty: Automatsko update from Web, free software updates, free access to on-line knowledge database, on-line technical support, 3 years hardware warranty}}}}

Prikaži više

Raspoloživost: Na lageru

Ukoliko zelite da narucite proizvod, saznate vise o proizvodu ili potrazite strucni savet molimo vas kliknite na dugme Kontakt i popunite formu.

Detalji

Clarity is advanced Chromatography Data Station (CDS) with optional software modules for data acquisition, processing and instrument control. Its wide range of data acquisition interfaces (A/D converters, LAN, USB, RS232) allows connection to any GC or LC chromatograph.
Up to four independent chromatography systems can be simultaneously connected, each can acquire up to 32 signals.
See examples of Clarity configurations.

You can switch any time between English, French, German, Russian, Spanish and Chinese localization.
Control modules provide integrated control of selected instruments such as GCs, pumps, detectors, autosamplers, etc.

Extensions provide functions for specific separation techniques such as PDA, GPC analysis, Mass spectrometry or SST.

Clarity2Go in your iPhone or Android powered mobile devices allows you to monitor running analyses from multiple installations of Clarity.

Clarity comes with extensive free support from DataApex as well as from the growing community of users in the Clarity Forum. Unlike many large corporations, the DataApex Company is in close contact with its users.

Dodatne Informacije

ŠIFRA	Clarity
Proizvođač	Rigol
Tip instrumenta	HPLC Tečna hromatografija
Podgrupa instrumenta	Softver
