TRIO combi

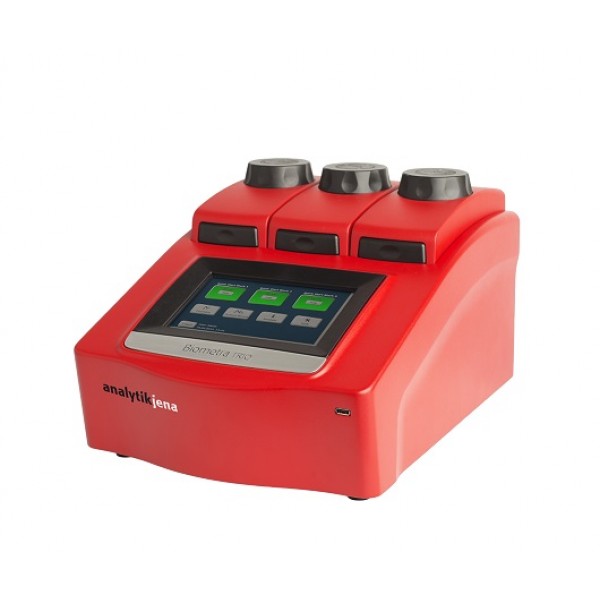

Model: Biometra TRIO combi
Block formats: 3 x 48 well 0.2 ml; 3 x 18** x 0.5 ml
Max. heating rate*: 3.0°C/sec
Avg. heating rate*: 2.7°C/sec
Max. cooling rate*: 2.7°C/sec
Avg. cooling rate*: 2.4°C/sec
Temp Uniformity: ±0.20°C within 15 sec at 50°C; ±0.30°C within 15 sec at 70°C; ±0.60°C within 15 sec at 95°C
Temp Range: 3°C to 99°C
Multiblock Tool: Temperature Optimisation Step (TOS)
Max. TOS span: ±47,5°C
Control Accuracy: ±0.1°C
Software options: User specific quick start of the last five programs for each sample block, program preview prior to start, toggle between spreadsheet and graphical programming mode, Temperature Optimization Step (TOS), generate service info files (SINF), extended self - test, adjustable ramp rates, PC control via Ethernet, comprehensive user administration tool, Protocol Wizard
Program memory: 30 individual user directories, 350 average programs
Display: 7" TFT touchscreen
Auto restart after power failure: Yes
Cool samples at 4°C: Yes
Heated Lid: High Performance Smart Lid (HPSL) for optimal lid pressure and excellent temperature uniformity
Lid Temperature Range: 30°C to 110°C
Power Consumption: max. 1000 Watt
Power Supply: 110, 115, 230 Volt / 50 - 60 Hz
Noise emission: Very low
Interfaces: 1x USB A Port, 1x Ethernet Port
Dimensions: 30 cm x 41 cm x 25 cm (W x D x H)
Weight: 17.3 kg
Working conditions: 5 - 35°C, 70% relative humidity

* measured inside the block according to Biometra standard procedure
** Capacity increases to 35 x 0.5 ml tubes by the use of small cap tubes

Raspoloživost: Nema na lageru

Detalji

TProfessional TRIO

Three instruments in one housing
User specific quick start of programs
Temperature Optimisation Step (TOS) - Function
Three independent Thermal Cyclers in one housing
The Biometra TRIO Thermal Cycler is the only instrument that provides three independent 48 well blocks and heated lids in one housing. Thanks to the multiblock technology three different independent protocols can be run in parallel. The Biometra TRIO offers high throughput in parallel operation (up to 144 x 0. 2 ml samples) in combination with the flexibility to run different protocols. This makes the Biometra TRIO Thermal Cycler the perfect instrument for laboratories with the demand for high flexibility and the need often to optimise new PCR - protocols.

User specific quick start of programs
The intuitive software offers very straightforward programming and for GMP - regulated laboratories highly configurable user management, plus extensive tools for system diagnostics as well as documentation of PCR runs. To create PCR protocols the user can select between tabular or graphical programming. The user - specific quick start in combination with the program preview makes tedious searches for previously used PCR programs superfluous.

Temperature Optimisation Step (TOS)
To find the optimal annealing temperature of new primers pairs the Biometra TRIO Thermocycler offers the Temperature Optimisation Step function. Temperature Optimisation Steps, by making use of the three blocks, provide different annealing temperatures in a gradient - like fashion. In the corresponding screen just enter an annealing temperature for the block in the middle and an increment, defining the temperature difference for the first and third block. For maximum ease of use programs with Temperature Optimisation Steps automatically start on all three blocks, there is no need to start and stop the blocks individually.

Dodatne Informacije

ŠIFRA 846-2-070-724
Proizvođač Biometra
Tip instrumenta Termosajkler
Podgrupa instrumenta Termosajkler
