WOF-L1000

Model: 1,176 Lit. WOF - L1000
Tip protoka vazduha: tip forsirane konvencije izazvane ventilatorom
Snaga motora ventilatora: 1/3HP x 3kom
Temperaturni opseg: Ambijentalna temperatura +5°C do 250°C
Temperaturna preciznost: ± 1.0°C na 150°C
Temperaturna uniformnost: ± 2.0°C na 150°C
Temperaturni senzor: PT100
Snaga grejača/Potrošnja: 7 kW
Tajmer i alarm: 99hr 59min (sa neprekidnim radom), alarm kad tajmer odbroji do kraja
Displej: dvolinijski LED displej za temperaturu i tajmer
Kontroler: Digitalni PID kontroler
Rezolucija: Kontrola: ±1.0°C, Prikaz: ±1.0°C
Vrata: zaštićenena čelična vrata sa silikonskim punjenjem
Broj vrata: 2 vrata

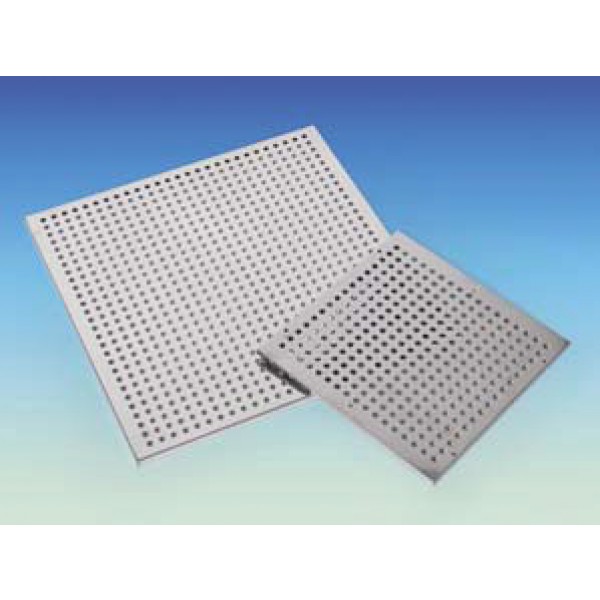

Police: U kompletu se isporučuju police od perforiranog nerđajućeg čelika
Police: 8kom
Nosivost po polici: 16 kg
Maksimalno dozvoljeno opterećenje: 128 kg (16kg x 8 polica)
Materijal: Interno: Nerđajući čelik (#304), Eksterno: zaštićeni čelik
Izolacioni materijal: Keramičke ploče i staklena vuna
Interne dimenzije (ŠxDxV) (mm): 1,400x700x1,200
Eksterne dimenzije (ŠxDxV) (mm): 1,650x840x2,150
Neto masa: 478 kg
Ostalo: Zaštita od previsoke temperature i zaštita od visoke/niske struje, senzor za detektovanje grešaka, zaštita od curenja mogućnost zaključavanja mehaničkom kopčom
Dimenzije pakovanja (WxDxH) (mm): 1,850x1,310x2,410
Bruto masa: 568 kg
Maksimalna snaga: 8.8 kW
Napajanje: trofazno AC 380V,50/60Hz

IQ/OQ/PQ kvalifikacija: Da, moguća

Prikaži više

Raspoloživost: Na lageru

Ukoliko zelite da narucite proizvod, saznate vise o proizvodu ili potrazite strucni savet molimo vas kliknite na dugme Kontakt i popunite formu.

Detalji

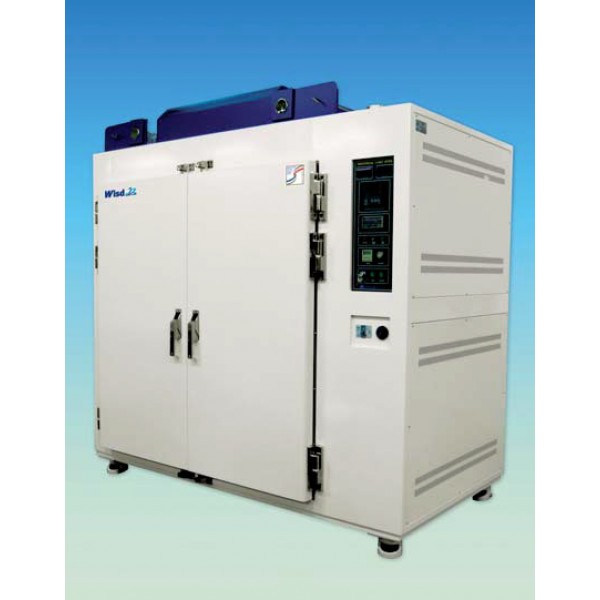

DAIHAN - brand Industrial Forced Convection Oven, "WOF - L", 486 - /840 - /1176 - Lit. , with Certi. & Traceability with Stainless steel Perforated Shelves, Digital PID Control System, Superior Temp. Accuracy, up to 250°C, ±1. 0°C

with Certificate & Traceability: Controlled by Serial Number, Certificate, Delivery - information, and Traceable Data Base System
Heavy Forced Air - Circulation by Strong and Reliable Fan System: ideal for Semiconductor and Electronic Parts Baking Purpose
CE Certified
PL (Product Liability) Insurance
Heavy Forced Air - Circulation by Strong and Reliable Fan System: Ideal for Semiconductor and Electronic Parts Baking Purpose
Voltage and Ampere Meter Equipped for Monitoring Safe Operation of the Machine
Digital PID Control System Enables Superior Temperature Accuracy
Digital Timer Function with Buzzer Alarm: up to 99 hrs 59 min
Locker is Available for Operational Safety Control by an Administrator
Over Temperature & Over Current Protection, Sensor Error Detection and Leakage Breaking
Multi - Channel Temperature Sensors with Digital Display for Monitoring Temperature, Uniformity in the Chamber is available(Optional)
Default Damper to Enhance Thermal Efficiency
Automatic Gas Exhaust Available (Optional)

Validation (IQ, OQ) Service is possible
