Model: T51P
Construction: ABS plastic with internal reinforcing ribs, reversible rear housing, painted steel wall mount bracket with adjustment knobs
Full Scale Capacity Range: 1 to 999,950 kg/lb
Max Displayed Resolution: 1:30,000d
Maximum Approved Resolution: 1:10,000e / Dual range 1:3000e
Maximum Counting Resolution: 1:300,000d
Min Average Piece Weight (APW): 0.1d
Weighing Units: kg, lb, g, oz, lb:oz, tonnes, custom
Weight Display: 6-digit, 7-segment LCD, 25mm High digits, with high-contrast white LED backlight
Checkweigh Indication: 3-color LED with configurable beeper signal
Keyboard: 4 function membrane switches, with positive feedback
Extra Functions/Modes: Display Hold, Dynamic Weighing, Counting, Checkweighing, Percent Weighing
Other Software Features: Zero calibration, Calibration test, Geographical gravity adjustment, Auto-tare, Auto-tare on-accept, GMP Time-Date, Key function lock, temporary display of higher resolution
Load Cell Excitation Voltage: 5V DC
Load Cell Input Sensitivity: up to 3 mV/V
Load Cell Drive: up to 8 x 350 Ω load cells
Stabilization Time: within 2 seconds
Zeroing Range: 2% or 100% of capacity
Span Calibration: 1 kg/lb to 100% of capacity
Interface: Built-in RS232 and external input / Optional RS422/485 / optional AC relay / Opional. DC relay / optional second RS232
Operating Temperature Range: -10°C to 40°C
Relative Humidity Range: Maximum 80% up to 31°C, decreasing linearly to 50% at 40°C
Power: 100-240 VAC / 50-60 Hz, internal universal power supply, line cord, 6 C-type dry cell batteries (80-hr. typical operation), optional internal rechargeable NiMH battery (30-hr. typical operation)
Enclosure Dimensions: 260W x 71D x 168H mm
Overall Dimensions (inc. bracket): 316W x 71D x 224H mm
Net / Shipping Weight: 1.5 kg / 2.3 kg
Shipping Dimensions: 330W x 240D x 180H mm

IQ/OQ/PQ service: Yes, possible

Model: T32XW
Construction: 304 stainless steel NEMA 4X / IP65 PCB enclosure 304 stainless steel wall mount bracket with adjustment knobs
Housing Dimensions (W x D x H): 212 x 71 x 149 mm
Full Scale Capacity Range: 5 to 20,000 kg / lb
Max Displayed / Approval Resolution: 1:20,000d / 1:6000e
Weighing Units: kg, lb, g, oz, lb:oz
Extra Functions/Modes: Parts Counting
Minimum Average Piece Weight: 1d
Sample size: 5, 10, 20, 50, 100, 200 (user selectable)
Weight Display: 25mm/1" High, 6-digit, 7-segment LCD with high-contrast white LED backlight
Keyboard: 4 function membrane switches, raised, tactile
Load Cell Drive: up to 4 x 350 Ω Load Cells
Load Cell Excitation Voltage: 5V DC
Load Cell Input Sensitivity: up to 3 mV/V (min 1 µV/d)
Stabilization Time: within 2 seconds
Auto-Zero Tracking: Off, 0.5, 1 or 3 divisions
Key Zeroing Range: 2% or 100% of capacity
Span Calibration: 5 kg/lb to 100% of capacity
Interface: Bi-directional RS232C
Power: 100-240 VAC / 50/60 Hz universal power supply, hardwire cord
Battery: Internal rechargeable sealed lead acid battery, 58-hour typical operation with full charge
Operating Temperature Range: -10°C to 40°C
Humidity Range: 80% for temperature up to 31°C, decreasing linearly to 50% at 40°C, non-condensing
Net Weight: 3.2kg
Shipping Weight: 4.4kg
Shipping Dimensions (W x D x H): 271 x 234 x 182 mm
Other Features: Environmental filtering, geographical gravity adjustment

IQ/OQ/PQ service: Yes, possible

Model: T32MC
Full Scale Capacity Range: 5 to 20,000 lb or kg
Displayed Resolution: 1:20,000 max / 1:6,000 NTEP Certified / Measurement Canada Approved
Construction: ABS plastic front panel with painted carbon steel rear housing; includes painted carbon steel table-wall mount bracket
Weight Display: 6-digit, 7-segment LCD, 1 in. / 25 mm digit height, with high-contrast white LED backlight
Keyboard: 4-button mechanical switches, raised tactile keys
Weighing Units: lb, oz, lb-oz, kg, g
Extra Functions/Modes: Parts Counting, Display Hold, Checkweighing, Weight Accumulation
Checkweigh Display: 3 LED: Red-green-yellow (Over-Accept-Under)
Minimum Average Piece Weight: 1d
Load Cell Excitation / Input Sensitivity: 5V DC / up to 3 mV/V (min 1 µV/d)
Load Cell Drive: Up to four 350 load cells
Stabilization Time: Within 2 seconds
Zeroing Range: 2% or 100% of capacity
Auto-Zero Tracking: Off, 0.5, 1 or 3 scale divisions
Span Calibration: 5 lb or 5 kg to 100% capacity
Interface: Bidirectional RS232C
Operating Temperature Range: 14°F to 104°F / -10°C to 40°C, Maximum relative humidity 80 % for temperature up to 31°C / 88°F, decreasing linearly to 50 % relative humidity at 40°C / 104°F, non condensing
Power: 9-12 VDC, 0.5A, external AC adapter
Enclosure Dimensions (W x D x H) (check pictures): 7.8 x 1.8 x 5.2 in / 198 x 46 x 132 mm
Net Weight: 1.5 lb / 0.7 kg
Shipping Dimensions (W x D x H): 10.7 x 9.2 x 7.2 in / 271 x 234 x 182 mm
Shipping Weight: 4.0 lb / 1.8 kg

IQ/OQ/PQ service: Yes, possible

Model: T32ME
Full Scale Capacity Range: 5 to 20,000 lb or kg
Displayed Resolution: 1:20,000 max / 1:6,000 NTEP Certified / Measurement Canada Approved
Construction: ABS plastic front panel with painted carbon steel rear housing; includes painted carbon steel table-wall mount bracket
Weight Display: 6-digit, 7-segment red LED 0.8in / 20mm digit height
Keyboard: 4-button mechanical switches, raised tactile keys
Weighing Units: lb, oz, lb-oz, kg, g
Extra Functions/Modes: Parts Counting, Display Hold, Checkweighing, Weight Accumulation
Checkweigh Display: 3 LED: Red-green-yellow (Over-Accept-Under)
Minimum Average Piece Weight: 1d
Load Cell Excitation / Input Sensitivity: 5V DC / up to 3 mV/V (min 1 µV/d)
Load Cell Drive: Up to four 350 load cells
Stabilization Time: Within 2 seconds
Zeroing Range: 2% or 100% of capacity
Auto-Zero Tracking: Off, 0.5, 1 or 3 scale divisions
Span Calibration: 5 lb or 5 kg to 100% capacity
Interface: Bidirectional RS232C
Operating Temperature Range: 14°F to 104°F / -10°C to 40°C, Maximum relative humidity 80 % for temperature up to 31°C / 88°F, decreasing linearly to 50 % relative humidity at 40°C / 104°F, non condensing
Power: 9-12 VDC, 0.5A, external AC adapter
Enclosure Dimensions (W x D x H) (check pictures): 7.8 x 1.8 x 5.2 in / 198 x 46 x 132 mm
Net Weight: 1.5 lb / 0.7 kg
Shipping Dimensions (W x D x H): 10.7 x 9.2 x 7.2 in / 271 x 234 x 182 mm
Shipping Weight: 4.0 lb / 1.8 kg

IQ/OQ/PQ service: Yes, possible

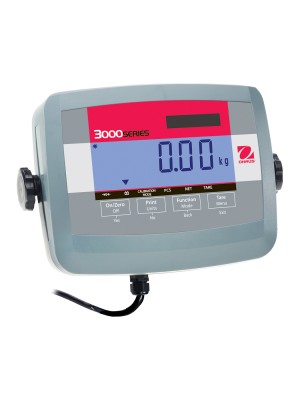

Model: T31P
Construction: ABS plastic with internal reinforcing ribs Reversible front-rear cover with 4 key-hole mounts in rear housing
Housing Dimensions (W x D x H): 210 x 71 x 168 mm
Full Scale Capacity Range: 5 to 20,000 kg / lb
Max Displayed / Approval Resolution: 1:20,000d / 1:6000e
Weighing Units: kg, lb, g, oz, lb:oz
Extra Functions/Modes: Parts Counting
Minimum Average Piece Weight: 1d
Sample size: 5, 10, 20, 50, 100, 200 (user selectable)
Weight Display: 25mm/1" High, 6-digit, 7-segment LCD with high-contrast white LED backlight
Keyboard: 4 function mechanical switches, raised, tactile
Load Cell Drive: up to 4 x 350 Ω Load Cells
Load Cell Excitation Voltage: 5V DC
Load Cell Input Sensitivity: up to 3 mV/V (min 1 µV/d)
Stabilization Time: within 2 seconds
Auto-Zero Tracking: Off, 0.5, 1 or 3 divisions
Key Zeroing Range: 2% or 100% of capacity
Span Calibration: 5 kg/lb to 100% of capacity
Interface: Bi-directional RS232C
Power: 9 VDC, 0.5A, AC adapter
Battery: Internal rechargeable sealed lead acid battery, 100-hour typical operation with full charge
Operating Temperature Range: -10°C to 40°C
Humidity Range: 80% for temperature up to 31°C, decreasing linearly to 50% at 40°C, non-condensing
Net Weight: 1.6kg
Shipping Weight: 2.6kg
Shipping Dimensions (W x D x H): 272 x 235 x 175 mm
Other Features: Environmental filtering, geographical gravity adjustment

IQ/OQ/PQ service: Yes, possible

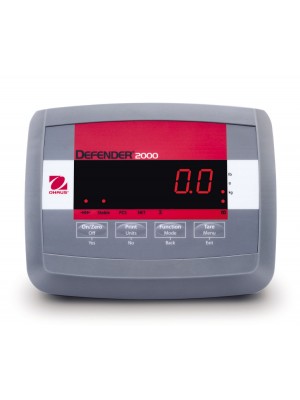

Model: T24PE
Opseg: Up to 20000 kg
Maximum Displayed Resolution: 1:20000
Weighing Units: kg, g, lb
Application Modes: Weighing, Parts Counting, Accumulation
Construction: ABS plastic housing
Display: 6-digit, 7-segment red LED, 20 mm high digits
Keyboard: 4 function mechanical keys, raised, tactile
Load Cell Excitation Voltage: 3 VDC
Load Cell Drive: Up to 4 x 350 Ω load cells
Load Cell Input Sensitivity: Up to 3 mV/V
Zero Range: 2% or 100% of full scale capacity
Tare Range: Full capacity by subtraction
Stabilization Time: 1 second
Auto-Zero Tracking: Off, 0.5, 1 or 3 divisions
Power: AC adapter with internal rechargeable lead acid battery
Battery Life: 80 hours continuous use with 12 hour recharge time
Interface: Optional RS232
Operating Temperature Range: -10°C to 40°C
Housing Dimensions (W x D x H): 210 x 168 x 80 mm
Net Weight: 1.4 kg
Shipping Weight: 2.4 kg
Shipping Dimensions (W x D x H): 272 x 235 x 175 mm

IQ/OQ/PQ service: Yes, possible

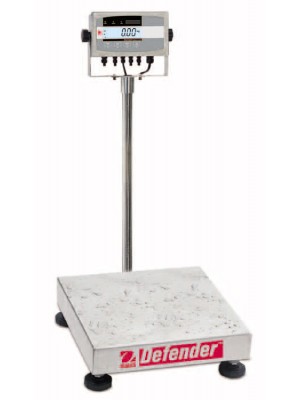

Model: D51XW300QX4
Base Model: D300WX
Indicator: T51XW
Capacity x Max Readability (d): 300kg x 20g / 1:15000d
Capacity x Approved Readability (e): 300kg x 100g / 1:3000e
Column: 680 mm fixed height, hollow tubular, stainless steel
Scale Dimensions (WxH1xH2xD1xD2) (check pictures): 610 x 137 x 940 x 610 x 730 mm
Shipping Dimensions: 1000L x 760W x 250H mm
Net / Shipping Weight: 39.4kg / 45.8kg

IQ/OQ/PQ service: Yes, possible

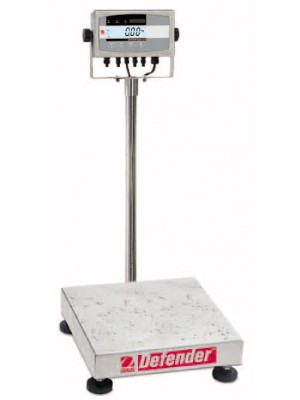

Model: D51XW150WL4
Base Model: D150WL
Indicator: T51XW
Capacity x Max Readability (d): 150kg x 10g / 1:15000d
Capacity x Approved Readability (e): 150kg x 50g / 1:3000e
Column: 680 mm fixed height, hollow tubular, stainless steel
Scale Dimensions (WxH1xH2xD1xD2) (check pictures): 457 x 115 x 940 x 457 x 577 mm
Shipping Dimensions: 810L x 600W x 240H mm
Net / Shipping Weight: 31.6kg / 33.8kg

IQ/OQ/PQ service: Yes, possible

Model: D51XW60WL4
Base Model: D60WL
Indicator: T51XW
Capacity x Max Readability (d): 60kg x 5g / 1:12000d
Capacity x Approved Readability (e): 60kg x 20g / 1:3000e
Column: 680 mm fixed height, hollow tubular, stainless steel
Scale Dimensions (WxH1xH2xD1xD2) (check pictures): 457 x 115 x 940 x 457 x 577 mm
Shipping Dimensions: 810L x 600W x 240H mm
Net / Shipping Weight: 31.6kg / 33.8kg

IQ/OQ/PQ service: Yes, possible

Model: D51XW30WR3
Base Model: D30WR
Indicator: T51XW
Capacity x Max Readability (d): 30kg x2g / 1:15000d
Capacity x Approved Readability (e): 30kg x10g / 1:3000e
Column: 350 mm fixed height, hollow tubular, stainless steel
Scale Dimensions (WxH1xH2xD1xD2) (check pictures): 305 x 95 x 590 x 305 x 425 mm
Shipping Dimensions: 490L x 410W x 440H mm
Net / Shipping Weight: 16.1kg / 18.5kg

IQ/OQ/PQ service: Yes, possible
